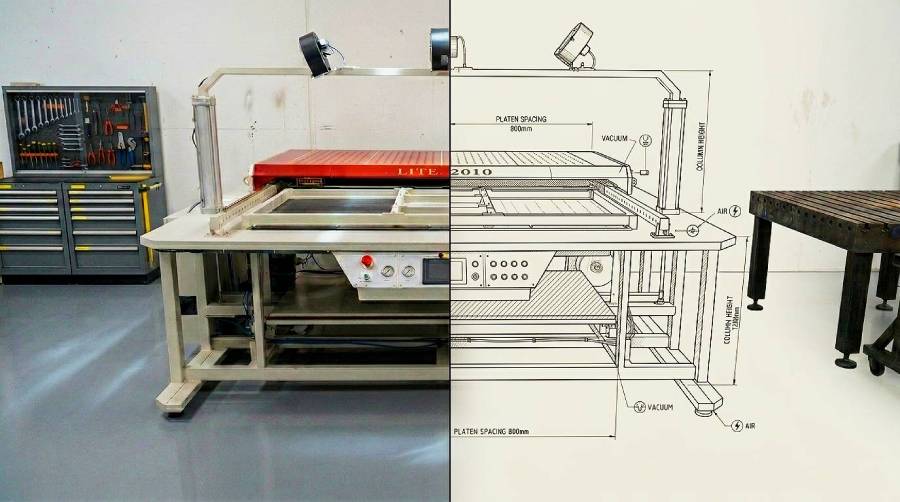

Industrial vacuum forming machine LITE 2010 shown half as a photograph and half as a technical drawing with measurements
10+
Models
8+
Years Exp.
900+
Formed Products
Start your business

Build Your Vacuum Forming Machine

Professional 3D CAD files for building high-quality vacuum forming machines. Detailed technical drawings, full dimensions, technical support.

Get Drawings →Our Services
Thermoforming machine drawings

Ready-to-Build Machine Drawings

Download professional technical drawings and start building your vacuum forming machine today.

Model 01
vacuum forming machine

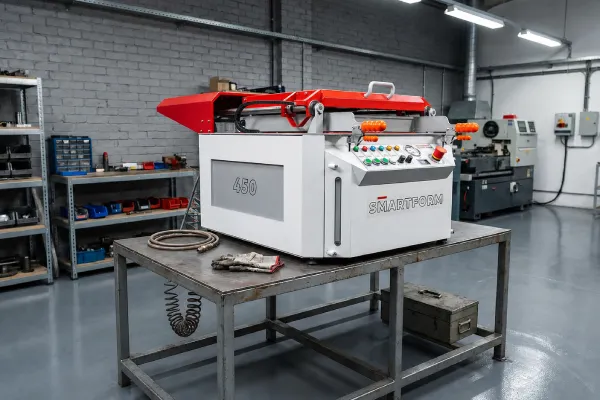

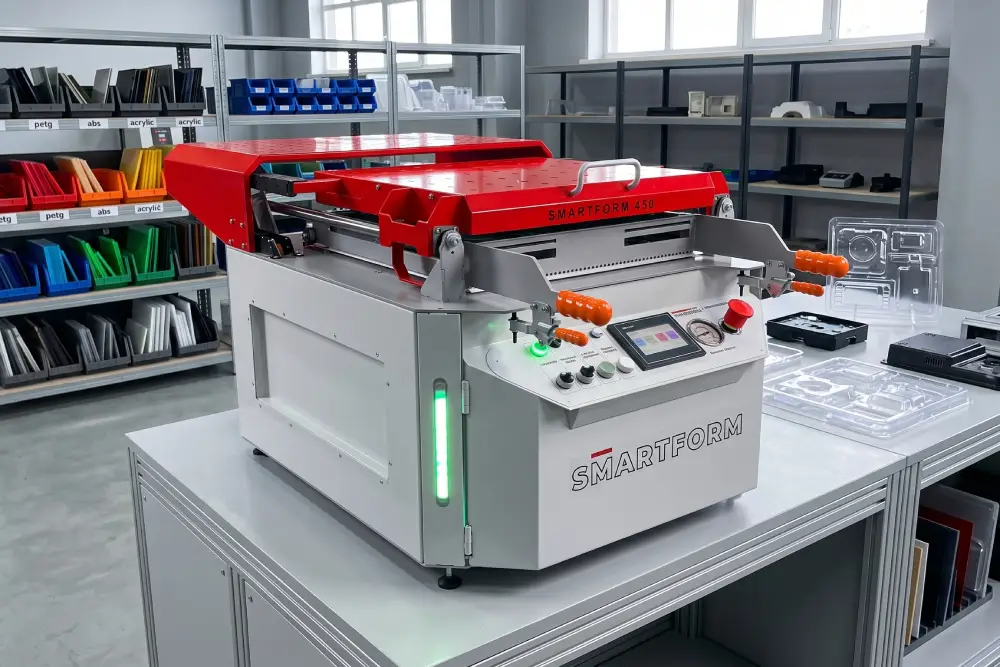

SMARTFORM 450

F-Size
📐 450×450 mm
↕ 200 mm
FILES
PDF-DXF-STEP-SLDASM
INCL.
vacuum & electrical schemes / control programmes
✉ Contact Us
Model 02
vacuum forming machine

LITE 686

F-Size
📐 646×620 mm
↕ 300 mm
FILES
PDF-DXF-STEP-SLDASM
INCL.
vacuum & electrical schemes / control programmes
✉ Contact Us
Model 03
vacuum forming machine

LITE 1366

F-Size
📐 1332×620 mm
↕ 350 mm
FILES
STEP-SLDASM
INCL.
vacuum schemes
✉ Contact Us
Model 04
vacuum forming machine

LITE 1010

F-Size
📐 1000×1000 mm
↕ 400 mm
FILES
STEP-SLDASM
INCL.
vacuum schemes
✉ Contact Us
Model 05
vacuum forming machine

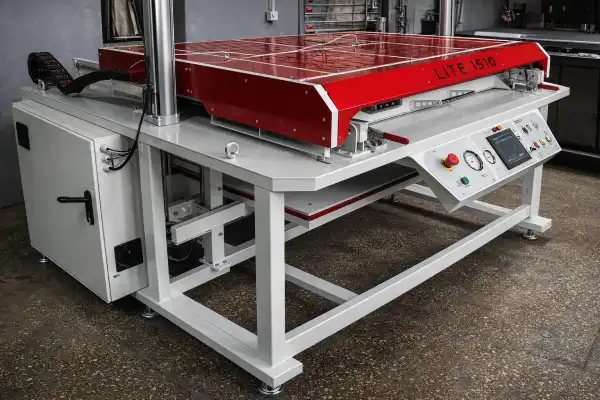

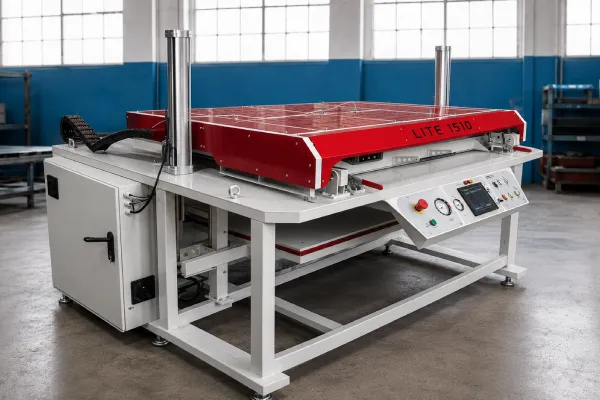

LITE 1510

F-Size
📐 1500×1000 mm
↕ 400 mm
FILES
PDF-DXF-STEP-SLDASM
INCL.
vacuum & electrical schemes / control programmes
✉ Contact Us
Model 06
vacuum forming machine

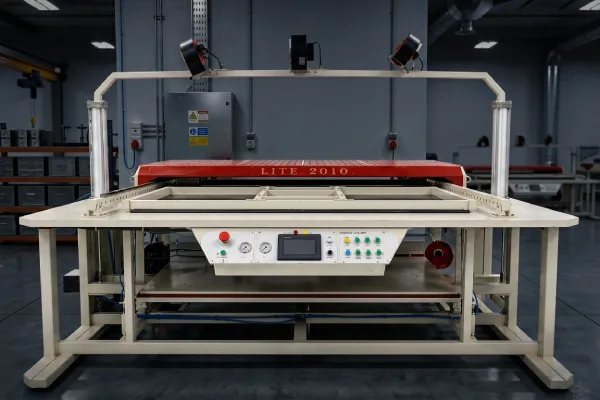

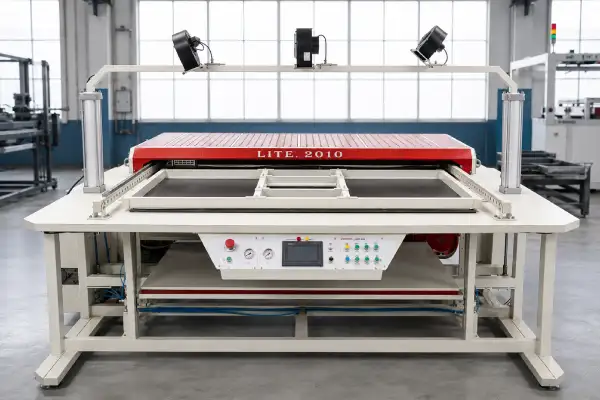

LITE 2010

F-Size
📐 2000×1000 mm
↕ 500 mm
FILES
PDF-DXF-STEP-SLDASM
INCL.
vacuum & electrical schemes / control programmes
✉ Contact Us
Model 07
vacuum forming machine

LITE 2215

F-Size
📐 2200×1500 mm
↕ 500 mm
FILES
PDF-DXF-STEP-SLDASM
INCL.
vacuum & electrical schemes / control programmes
✉ Contact Us
Model 08
vacuum forming machine

LITE 2515

F-Size
📐 2500×1500 mm
↕ 500 mm
FILES
STEP-SLDASM
INCL.
vacuum schemes
✉ Contact Us
Model 09
vacuum forming machine

LITE 3020

F-Size
📐 3000×2000 mm
↕ 500 mm
FILES
STEP-SLDASM
INCL.
vacuum schemes
✉ Contact Us
Why Choose Us

Built by Engineers, for Engineers

Save costs and gain independence from suppliers.

📋
Real Working Drawings
All drawings are tested and verified on actual machines. No theoretical designs — every drawing has been built and proven.
⚙️
Optimized Design
An optimized design approach enables a low-cost machine without compromising functionality, while fully meeting vacuum forming requirements.
🔥
Own Heaters
We developed our own heating elements to further reduce machine production costs. We can provide details and implementation guidance upon request.
🏆
8+ Years Experience
Our team has developed and commissioned vacuum forming machines across various industries in 24 countries.
🎧
After-Sale Support
Have questions during your build? We answer all technical questions related to the drawings you purchased.
🚀
As a Result
By purchasing the drawings, you gain scalability independence and increase your expertise in vacuum forming.
Services

Expert Consulting & Support

We don't just sell drawings. We help you succeed with your vacuum forming process from start to finish.

Process Consulting
Get expert advice on vacuum forming technology, material selection, mold design, and process optimization. We help you avoid costly mistakes before you start building.
Machine Setup & Commissioning
Built your machine but struggling to get it running? We provide remote and on-site commissioning support to calibrate temperature, vacuum, and cycle timing.
Old Equipment Modernization
Have aging vacuum forming equipment with inconsistent results? We diagnose issues, upgrade control systems, and restore your machine to peak performance.
Training & Knowledge Transfer
Hands-on training for your team on vacuum forming operations, troubleshooting, and maintenance. Available online or at your facility.
Contact Us

Ready to Start Your Build?

Have questions about drawings, need consulting, or want to discuss your vacuum forming project? Get in touch — we respond within 15 minutes.

💬
1

Get in Touch

Write via WhatsApp or Email — we reply in 15 min

2
📐

Choose Model

Pick the machine size that fits your production needs

3
💳

Pay & Get Files

PayPal, Wise or USDT — files delivered instantly

4
🏭

Start Building

CAD, PDF and DXF files ready to manufacture

💬 WhatsApp📐 Drawings
FAQ

Your Vacuum Forming Questions

Frequently asked questions with detailed answers. We value your time and have compiled the most important information here.

What CAD file formats do you provide?

All models are provided in STEP (.step / .stp) and SolidWorks (.sldasm) formats. Some vacuum forming machine models also include PDF drawings and DXF files for manufacturing processes such as laser cutting, bending, and machining.

How do I order a drawing?

Contact us via email or WhatsApp, and we will offer the best terms and a suitable payment method based on your needs. We accept payments via PayPal, Payoneer, Wise, bank transfer (SWIFT), and USDT.

Can I get a custom drawing?

At this time, we do not offer custom design services and provide only pre-developed models. However, we offer technical consulting on vacuum forming, production setup, and thermoforming machine restoration and upgrades.

What is the delivery time for drawings?

Access to the drawings is provided immediately after payment. You will receive a Google Drive link with the selected model archives.

Do the drawings include electrical schematics?

Yes, most models include electrical schematics. Each model lists the included documentation in the “drawings” section, including any additional files provided with the CAD data.

Which PLC do you use?

We use DELTA (Taiwan) controllers. They are widely available, reliable, and cost-effective. All control programs are developed and optimized for these controllers.
