Pick the wrong plastic and no amount of process tuning saves you. The sheet either tears mid-draw, comes off the mold warped, or looks fine in the shop and fails at the customer's site six months later. I've run all eight materials covered here through production, and this guide gives you the numbers and reasoning I use when a new job comes in. If you're new to the process itself, start with how vacuum forming actually works before diving into material selection.

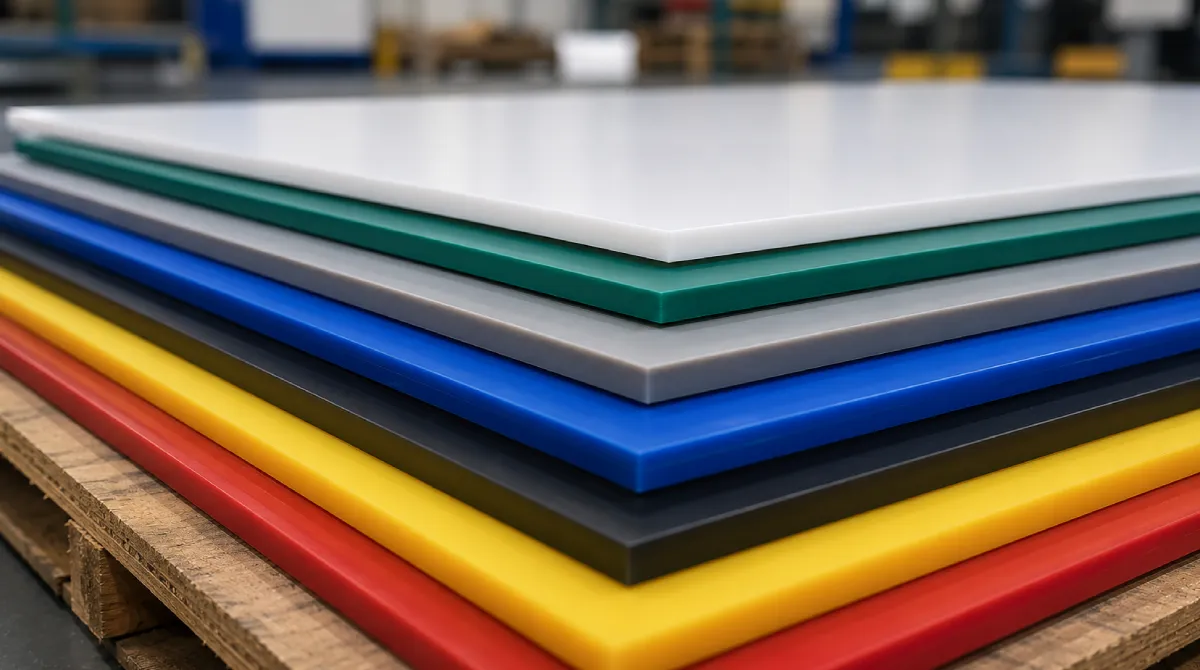

How to Choose a Thermoforming Plastic: The Framework

Before getting into individual materials, it helps to have a clear decision framework. On every new project I work through the same seven questions in order:

• Mechanical load: Is the part structural, decorative, or somewhere in between? This sets the floor on impact strength and stiffness.
• Chemical exposure: Oils, solvents, cleaning agents, food contact. Some materials that look fine on paper dissolve on contact with certain chemicals.
• UV and weather: Outdoor parts need either built-in UV stability or a protective cap layer. Without it, parts chalk and crack within a year.
• Optical requirements: Transparency, gloss level, surface texture retention after forming.
• Regulatory compliance: FDA for food contact, UL 94 ratings for electronics and transport, specific certifications for medical or aerospace.
• Gauge and draw ratio: Thick-gauge parts (3 mm and up) have different material requirements than thin-gauge packaging film.
• Cost and availability: ABS and HIPS are commodity materials with stable supply. Some engineering grades come with 6-week lead times.

The second big split happens at the polymer morphology level: amorphous vs. semi-crystalline. This is not academic. It directly controls how the sheet behaves during heating and forming.

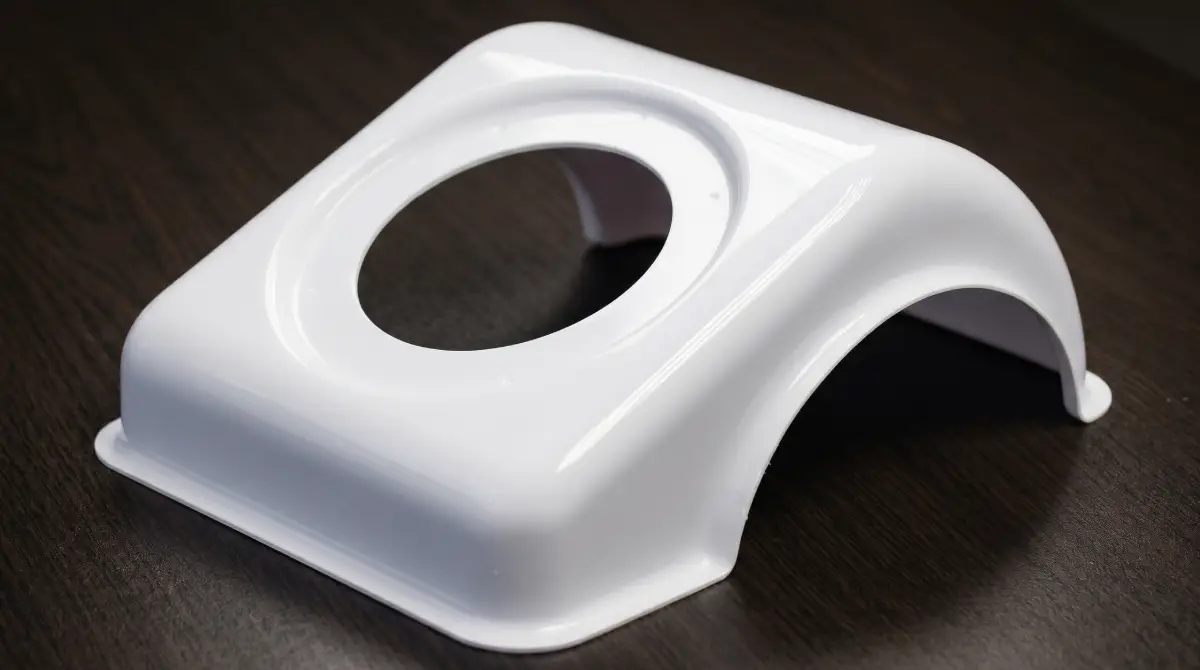

ABS: The Default Choice for Industrial Parts

ABS (acrylonitrile-butadiene-styrene) is the material I reach for first when nothing in the part spec rules it out. It forms cleanly, holds detail, machines well after forming, and bonds with solvent cement. The three monomers each carry their weight: acrylonitrile brings chemical resistance and surface hardness, butadiene keeps it tough at low temperatures, and styrene gives you the gloss and the flow characteristics that make deep draws manageable.

Forming Parameters

Sheet surface temperature at forming: 150–170°C. At the low end of that range the material is slightly stiffer and better for shallow draws where you want maximum wall thickness retention. Push toward 165–170°C for anything with a draw ratio above 1.5:1 or tight corner radii.

ABS absorbs moisture from the air. At 0.2–0.3% moisture content, heating the sheet causes steam to form inside the melt, which shows up as blisters or bubbles on the surface. The fix is simple: dry the material before forming. My standard practice is 2 hours at 80°C for sheets up to 3 mm. Add 1 hour per additional millimeter of thickness.

ABS Variants Worth Knowing

HIPS: High Output, Low Cost

HIPS (high-impact polystyrene) is what I run when ABS is overspecified and the budget is tight. It's a blend of polystyrene with butadiene rubber, which gives plain PS enough toughness to survive forming without shattering. The density is 1.04–1.06 g/cm3, so you get more parts per kilogram of material than with most alternatives.

Forming temperature is 140–165°C, slightly lower than ABS. HIPS flows into mold texture extremely well, which is why it's the standard material for refrigerator liner production worldwide. The interior of almost every domestic fridge is HIPS — it handles the food contact, the low service temperatures, and the constant humidity without issue.

The main limitation of HIPS is UV sensitivity and limited chemical resistance. I don't use it outdoors without a protective coating, and I avoid it anywhere near aromatic solvents or strong cleaning agents. For indoor display, tooling inserts, and food service trays, it's hard to beat on a cost-per-part basis.

HDPE: Chemical Resistance and Outdoor Toughness

HDPE is the material that chemical plants, truck body manufacturers, and anyone who needs a part to survive a decade of abuse reach for. It's essentially immune to most acids, alkalis, and solvents. The density sits at 0.94–0.96 g/cm3 — the lowest of the structural materials covered here.

Forming temperature: 140–170°C. The challenge with HDPE is not getting it hot enough to form — it's controlling what happens when it cools. Shrinkage runs 2.0–5.0%, and it's anisotropic: the sheet shrinks more along the extrusion direction (machine direction) than across it (transverse direction). If you're designing the mold for a tight-tolerance HDPE part, you need to know which direction the sheet was extruded and build different shrinkage compensation into each axis.

Draft angles for HDPE parts need to be generous. I use at least 3° on male tools (plugs) and 5° on female tools (cavities). The material clings to the mold during cooling and needs clear release geometry. Bedliners for pickup trucks, portable sanitation units, and drainage membranes are the high-volume applications. Anything that spends its life outside and gets kicked around. If warping after demold is a recurring issue with HDPE or PP parts, the detailed diagnosis is in why vacuum formed parts warp and how to fix it.

PP (Polypropylene): Lightest Structural Option

Polypropylene at 0.90–0.91 g/cm3 is the lightest material in this guide. For weight-critical applications that also need reasonable stiffness and temperature resistance up to around 100–110°C in service, it often wins. The living hinge capability — where thin PP sections survive thousands of flex cycles without cracking — opens up part geometries that aren't possible in other materials.

Forming temperature: 155–175°C. What makes PP tricky is the crystalline melting point. The sheet holds its stiffness right up until the crystallites melt, then sag happens fast. I've seen operators who were used to ABS get caught off guard by this. Watch the sheet carefully between 155 and 160°C — once you see the first sign of softening, you're close to the forming window. Delay by another 20 seconds and you've got a sheet on the floor.

• Homopolymer PP: Higher stiffness and HDT (up to 115°C), but brittle below 0°C. Good for warm indoor applications.
• Copolymer PP: Better impact resistance across a wider temperature range, including sub-zero. My default choice for outdoor parts or anything that ships to cold climates.

Shrinkage is 1.0–2.5% and anisotropic, similar to HDPE. Allow for it in mold design, particularly on parts with large flat areas that can't hide warpage.

Transparent Materials: PC, PMMA, and PETG Compared

When the part needs to be clear, the choice between polycarbonate, acrylic, and PETG comes down to what kind of clear you need and what the part has to survive.

Polycarbonate (PC)

PC is the choice when the part cannot break under any realistic loading scenario. The impact strength of 600–800 J/m puts it in a different category from everything else in this guide. Anti-vandal glazing, protective screens for heavy equipment, and transparent structural components that might take a direct impact — those are PC jobs.

The forming process is demanding. I run PC at 180–210°C, and the pre-drying is not optional. At 120°C for a minimum of 8 hours (sometimes 12 for thick sheet), the material must drop below 0.02% moisture content. Any water present causes hydrolysis during heating — the polymer chains break, and you lose both clarity and mechanical properties permanently. There is no recovering a batch of PC that was formed wet.

PMMA (Acrylic)

Acrylic has the best optical clarity of any material here — light transmission over 92%, compared to 88% for PC. It also has built-in UV stability, which means outdoor signage in acrylic holds its color and clarity for 10+ years without UV-stabilized grades or coatings.

The trade-off is brittleness. An impact strength of 15–30 J/m means acrylic will crack under impact loads that PETG or PC would shrug off. For static applications — light diffusers, display windows, decorative panels — it's excellent. For anything that might take a knock in service, consider whether the clarity advantage is worth the fragility.

Forming temperature is 150–180°C. Acrylic is notch-sensitive, so mold radii matter. I use a minimum corner radius equal to the sheet thickness. Smaller than that and you're building stress risers that will crack in service or during secondary operations like drilling.

PETG

PETG is the practical choice when you need clarity, food contact compliance, and a fast cycle. The glycol modification in the polymer chain prevents the crystallization that makes standard PET difficult to thermoform, and it eliminates the moisture sensitivity. I can run PETG directly from the roll without drying — that alone makes it attractive for high-output thin-gauge lines where drying is a bottleneck.

Forming temperature: 120–160°C. Cycle times are shorter than PC or PMMA, and the part comes off with good surface quality. Impact strength is solid at 80–120 J/m. The limitation is service temperature — PETG starts to soften around 70–80°C, so it's not suitable for hot-fill food applications or parts near heat sources.

PVC: Inherent Flame Resistance at Low Cost

Rigid PVC (polyvinyl chloride) has a property that no other material in this list offers naturally: it self-extinguishes. The chlorine content in the polymer acts as a built-in flame retardant without additives. For building cladding, electronic packaging, and medical device housings where fire behavior matters, PVC is often the most cost-effective route to compliance.

Forming temperature: 140–170°C. The critical issue with PVC is degradation above the processing window. Overheated PVC releases hydrogen chloride gas — colorless, heavier than air, and highly corrosive. It damages metal tooling and ventilation systems, and it's dangerous in enclosed spaces. The shop exhaust must be running properly when processing PVC. I set the heater zone temperatures conservatively and watch the sheet closely; a slight yellowing at the edges before the sheet reaches the platen is a warning sign that temperatures are too high.

Specialty Materials: ESD, Flame Retardant, and High-Performance Grades

ESD and Conductive Grades

For electronics manufacturing, the carrier trays, component packaging, and handling fixtures that protect sensitive devices from electrostatic discharge need to be specified precisely. Three levels of static control exist, and choosing the wrong one either leaves components unprotected or creates a different failure mode.

These properties are achieved by adding carbon black, carbon fiber, or carbon nanotubes to ABS, HIPS, or PC base resins. The conductive filler does affect forming behavior slightly — carbon-filled sheets can be stiffer and may need 3–5°C higher forming temperatures compared to unfilled grades of the same base material.

High-Temperature Materials

For parts in service above 110°C — engine compartment covers, parts near exhaust systems, oven-adjacent components — the standard materials run out of headroom. PEI (polyetherimide, commercially known as Ultem) handles continuous service temperatures up to 170°C and carries a UL 94 V-0 flame rating. It's used in aerospace interior components and medical sterilization trays. Forming temperature for PEI is 230–260°C, which requires equipment with high-output heating systems and metal tooling that can handle the thermal load.

Heating Physics: Why Even Temperature Distribution Matters More Than Peak Temperature

The forming temperature numbers I've given for each material are surface temperatures at the sheet, not heater setpoints. The relationship between heater output and sheet surface temperature depends on the material's infrared absorption spectrum, sheet thickness, heater type, and distance.

Thin sheets (under 2 mm) heat fast and uniformly. Thick sheets (6 mm and up) develop a temperature gradient through the cross-section — the surface gets hot while the core lags behind. If you push the heater output to compensate, the surface scorches before the core reaches forming temperature. The solution is longer, slower heating cycles with lower heater output, or using longer-wavelength ceramic heaters that penetrate more evenly than short-wave quartz elements.

Edge cooling is a practical issue that often gets overlooked. The clamping frame holds the sheet perimeter and conducts heat away from the edge zone. In practice this means the center of the sheet reaches forming temperature before the edges do. Zoned heating — running edge zones at 10–15% higher output than center zones — compensates for this. Without it, the center overheats trying to get the edges hot enough, and you get webbing, sheet thinning at center, or incomplete forming at the corners.

Mold Design: Shrinkage Compensation and Release Geometry

A mold that works for ABS will not necessarily work for HDPE without modification. Material-specific mold design is not optional — it's where dimensional accuracy is determined. For a full walkthrough of mold geometry, venting patterns, and tool material choices, see the vacuum forming mold design guide.

Calculating Shrinkage Compensation

Draft Angles and Corner Radii

Male tools (plugs) give you control over the inside surface of the part — detail and dimension are accurate on the inside. Female tools (cavities) control the outside surface. For parts where the outer cosmetic face matters — vehicle panels, display housings — a female tool is usually correct. For parts where interior fit matters, like liners or trays that hold components, male tools give more control.

Trimming and Secondary Operations

Forming is only part of the process. How you cut and join thermoformed parts affects dimensional accuracy, edge quality, and ultimately cycle time.

Trimming Methods

• 5-axis CNC routing: Best for thick-gauge parts in ABS, HDPE, and PC. Achieves edge tolerances of +/-0.2 mm. The machine can follow complex 3D trim lines that no die or fixture can replicate. High tooling flexibility but higher per-part cost than in-line trimming.
• Steel-rule die (in-line): Standard for thin-gauge packaging in PETG, HIPS, and PP. The trim die is integrated into the forming line, and parts are cut and stacked in one pass. Very fast at high volume but requires a new die for each part geometry.
• Waterjet cutting: Useful for PC and PMMA where routing creates edge chips. The cold cutting process avoids the stress cracking that heat from a router bit can initiate in brittle clear materials.

Joining Methods

Diagnosing Common Forming Defects by Material

Most defects in thermoforming trace back to temperature, timing, or material preparation. Here are the problems I see most often and how I address them. For a broader list of 15 common defects across all materials, the full vacuum forming troubleshooting guide covers each one with root cause and fix.
