Vacuum Forming Machine In Stock — Industrial 1200x2100 mm Ready to Ship

Updated 2026  ·  8 min read

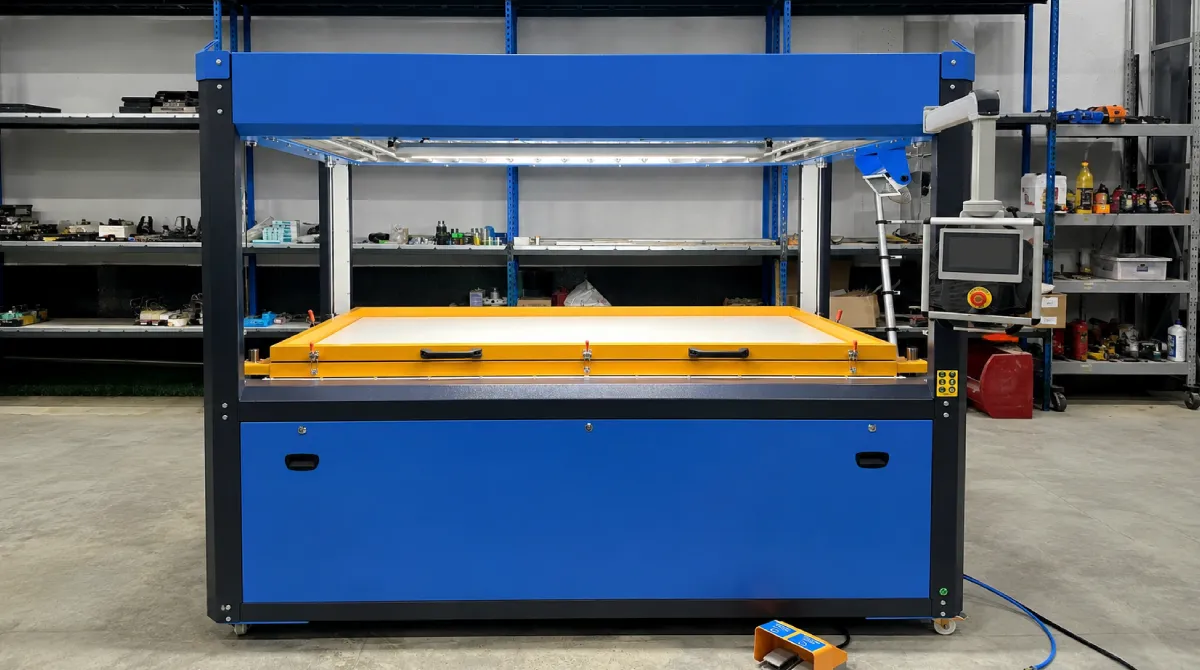

If you need a vacuum forming machine in stock and available now — the TRP-1200x2100 is built, tested, and ready to ship from our facility. This is a full industrial machine with a 1200×2100 mm forming table, 500 mm draw depth, and quartz heating across 16 independently controlled zones. No lead time on production. Order confirmed — machine ships.

The TRP-1200x2100 is aimed at production environments that work with large-format parts: automotive interior panels, industrial enclosures, HVAC components, point-of-sale displays, and custom packaging trays. Sheet thickness up to 5 mm. Mold capacity up to 400 kg. The machine is built around a DVP LC 60 oil-type vacuum pump and controlled through a GMT PLC with a 7" Flexem capacitive HMI touchscreen on a swivel arm.

Full Technical Specifications

Below is the complete specification sheet for the TRP-1200x2100 currently in stock. These are measured, tested parameters — not estimated. Every unit goes through a forming cycle validation before it leaves the facility.

← swipe →

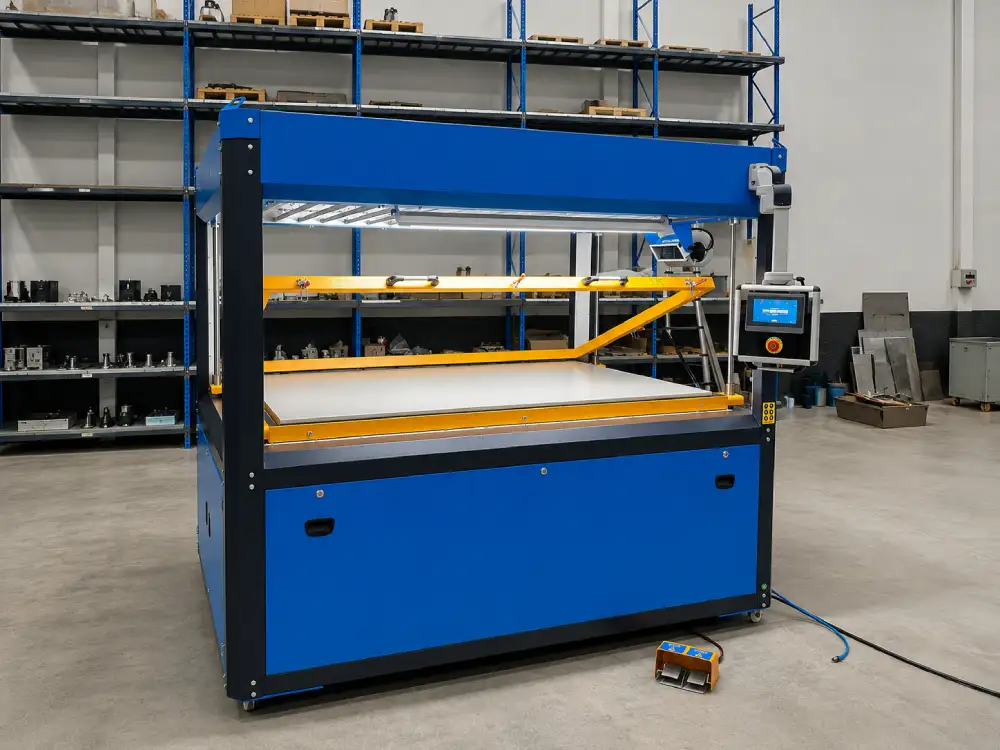

Heating System: Quartz, 16 Zones

The TRP-1200x2100 uses a quartz heating system with 16 independently controlled analog zones across the heating platen. On a forming table this size — 1200×2100 mm — zone control is not optional, it is the difference between consistent walls and parts with hot spots and webbing.

Quartz heaters in the medium-wave range (2.4–4.0 µm) are the standard for most industrial thermoplastics: ABS, HIPS, PETG, PC, PMMA, PP, HDPE. Medium-wave energy penetrates the sheet more evenly than short-wave, which primarily heats the surface. For a 5 mm sheet — the maximum this machine handles — even heat distribution through the cross-section matters as much as surface temperature. You can read more about material-specific forming temperatures in our thermoforming plastics breakdown.

In practice, the 16-zone layout on a platen this size gives you enough granularity to compensate for edge cooling effects, handle sheets with non-uniform starting temperature, and dial in different heat profiles for different materials without full reconfiguration. The analog control approach keeps the system robust in industrial environments — no digital zone controllers means fewer firmware dependencies in the field.

Control System: GMT PLC + Flexem HMI

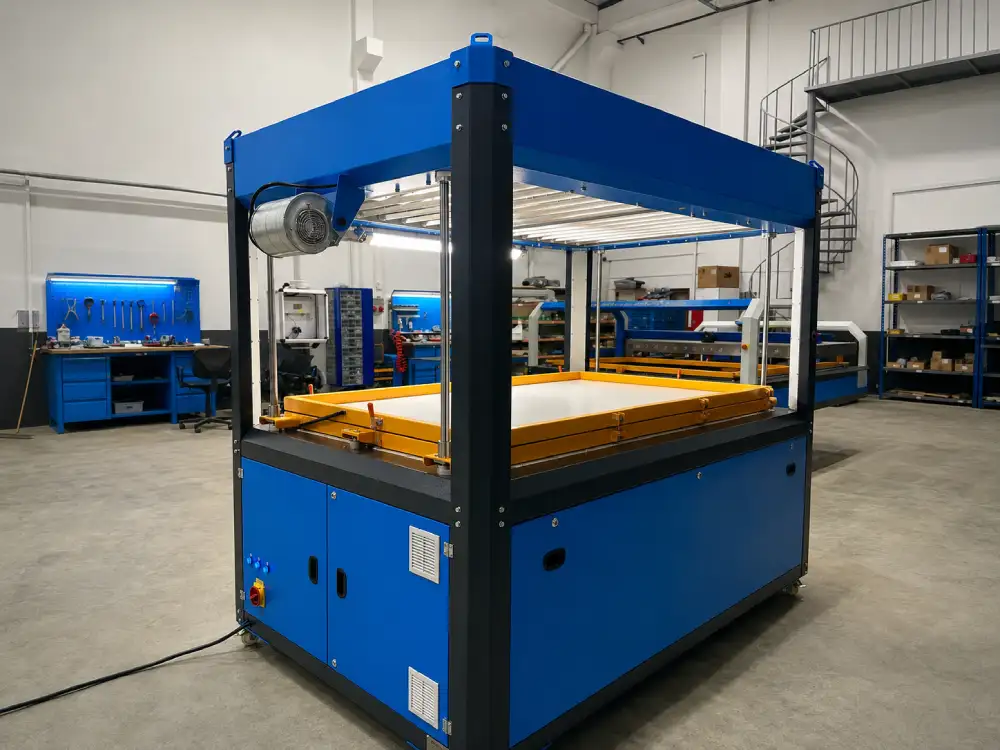

Machine logic runs on a GMT PLC paired with proprietary control software. The operator interface is a 7-inch Flexem color capacitive touchscreen mounted on a swing arm — positioning the display close to the forming zone where the operator is actually standing during a cycle.

From the HMI the operator sets and monitors heating zone temperatures, platen travel position, vacuum timing, cooling fan duration, and cycle counts. The swing arm matters in production: when you're loading 400 kg of mold and feeding 5 mm ABS sheet, having the screen fixed to a panel three meters away is a workflow problem, not a minor inconvenience.

The control software stores cycle programs by part — once you've dialed in the forming parameters for a specific mold and material combination, you call the program and run. No manual re-entry of settings between shifts.

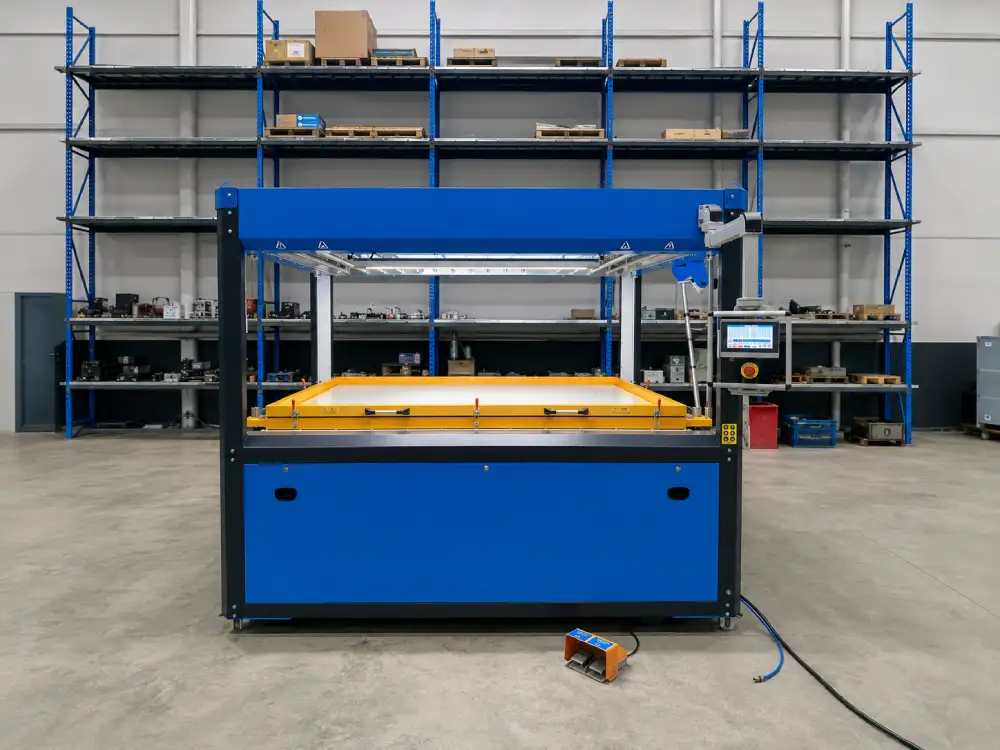

In Stock — Ships to Any Country

This machine is physically in our facility, fully assembled and tested. When you place an order, you're not waiting on a production slot — you're waiting on logistics. We ship vacuum forming machines to customers in 24 countries and have established freight routes for industrial equipment across Europe, the Middle East, Southeast Asia, North America, and Australia.

For lead time on freight to your specific country, contact us directly with your location and port of entry. We provide a freight quote alongside the machine quote — no surprises on landed cost.

Who This Machine Is Built For

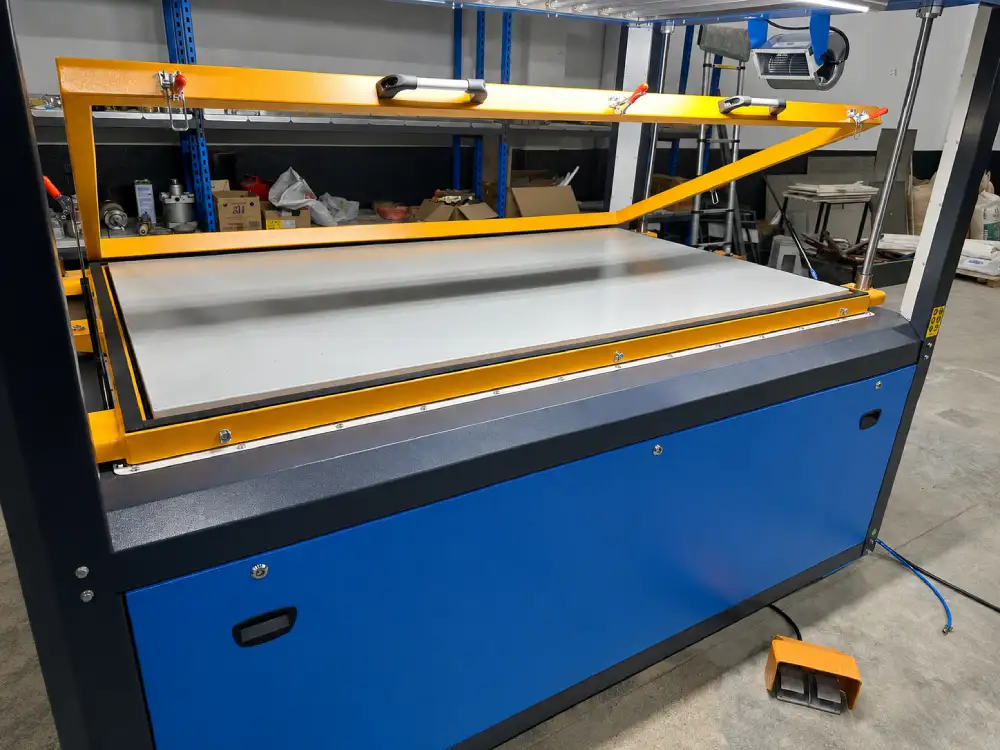

A 1200×2100 mm forming table with 500 mm draw depth is not a prototyping machine. The TRP-1200x2100 is in the category of industrial production equipment. The applications that make sense at this format and draw depth:

• Automotive and transport: door panels, headliner sections, trunk liners, bus interior cladding. Large single-piece parts that would require seaming on a smaller machine.
• Industrial enclosures: equipment housings, machine covers, electrical panel shrouds. Forming at 5 mm thickness in ABS or HIPS gives structural parts without injection tooling costs.
• HVAC and ducting components: diffuser panels, air distribution covers, equipment shells. The 500 mm draw depth handles the geometry of most duct transition pieces.
• Retail and POS displays: large-format display shells, kiosk panels, counter displays. Production runs in PETG or HIPS, fast cycle times relative to fabricated alternatives.
• Packaging and trays: industrial protective trays, insert sets for large components. The 400 kg mold capacity accommodates aluminum tooling for demanding production volumes.
• Signage: illuminated sign faces, letter backings, channel letter substrates. See our detailed breakdown in the vacuum forming for signage article.

If your current process involves outsourcing large-format thermoforming, or you're running an undersized machine and nesting multiple cycles to get one large part, this machine eliminates both constraints. The economics shift quickly once you're producing at volume in-house.

For context on how to evaluate whether vacuum forming is the right process for a specific application — including where it competes with injection molding and where it doesn't — see our vacuum forming process overview.
