Floor-Standing Vacuum Forming Machine LITE 686

Floor-standing vacuum forming machine LITE 686 for professional thermoforming applications. Equipped with a 646×620 mm forming area and 300 mm forming depth, it offers the ideal balance between compact size and production capability. Efficient infrared heating, stable vacuum performance, and precise temperature control ensure accurate detail reproduction and repeatable results. Designed for small to medium-scale production, prototyping, and custom plastic part manufacturing in industries such as packaging, signage, automotive, and product design.

646×620 mm forming area17 kW3~ 400 V / 50 Hz
Send Request →Technical Files ↓
LITE 686
Floor Standing Vacuum Forming Machine LITE 686

. Technical Specifications

Complete technical specifications and standard configuration of the LITE 686 floor-standing vacuum forming machine. The machine features a 646×620 mm forming area and 300 mm forming depth, optimized for precise thermoforming of various thermoplastics. All parameters correspond to the base model and may vary depending on selected options. Engineered for stable operation, consistent heating, and reliable vacuum performance in professional production environments.

Basic Technical Specifications
Parameters Value
Sheet size686 × 660 mm
Forming area646 × 620 mm
Max depth of draw300 mm
Max material thickness6 mm
Power requirements3~ 400 V / 50 Hz
Power consumption17 kW
Design Implementation Methods
Parameters Value
Heating driveManual
Table drivePneumatics
Clamping frame driveManual
HeatersInfrared quartz heaters, 450 W
ControlOperator panel 4.3"
Formed materialABS, PETG, HIPS, PVC, PP, PC etc.

. Machine Options

Enhance the functionality of the LITE 686 vacuum forming machine with optional upgrades tailored for advanced thermoforming tasks. Available options include multi-zone heating control, process recipe saving, pre-stretching system, pyrometer temperature monitoring, and air cooling. These features improve forming accuracy, reduce cycle times, and ensure repeatable production results, making the machine a flexible solution for growing manufacturing needs.

01

Recipe Saving

Save and recall heating time, heating power, and vacuum parameters for each material and mould — repeat results with one button press.

Convenience
02

Plastic Pre-stretching

Air pre-stretching before raising the mold to the upper position ensures uniform wall thickness across deep draws and complex geometries.

Quality
03

Reducing Forming Window

Adjustable forming window insert reduces the working area for small parts — less material waste and faster cycle times.

Efficiency
04

Mould Ventilation

Integrated mould venting system enables safe part release without damage, preventing corner creasing and surface defects.

Quality
05

5 control zones

5 independent heating zones with individual power adjustment — ideal for asymmetric parts or materials with uneven thickness.

Control
06

Radiation pyrometer

Precise temperature control is ensured by a radiation pyrometer with real-time measurement and direct adjustment from the machine control panel.

Control
06

Air cooling

Installation of high-performance centrifugal fans on a rotary platform for rapid product cooling.

Control

. Gallery

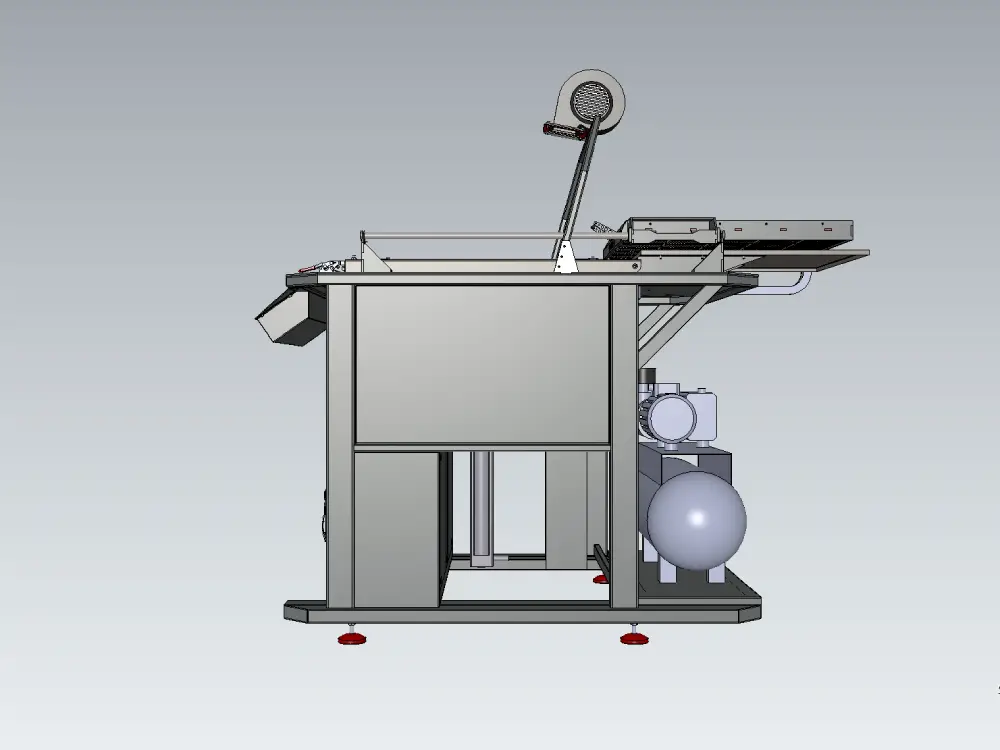

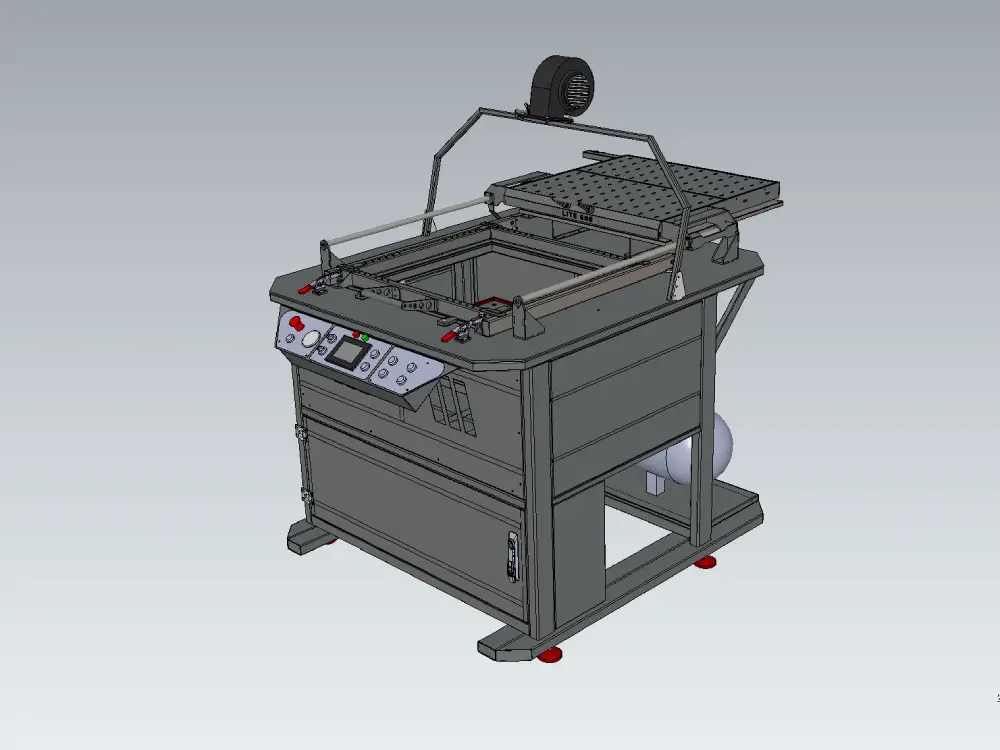

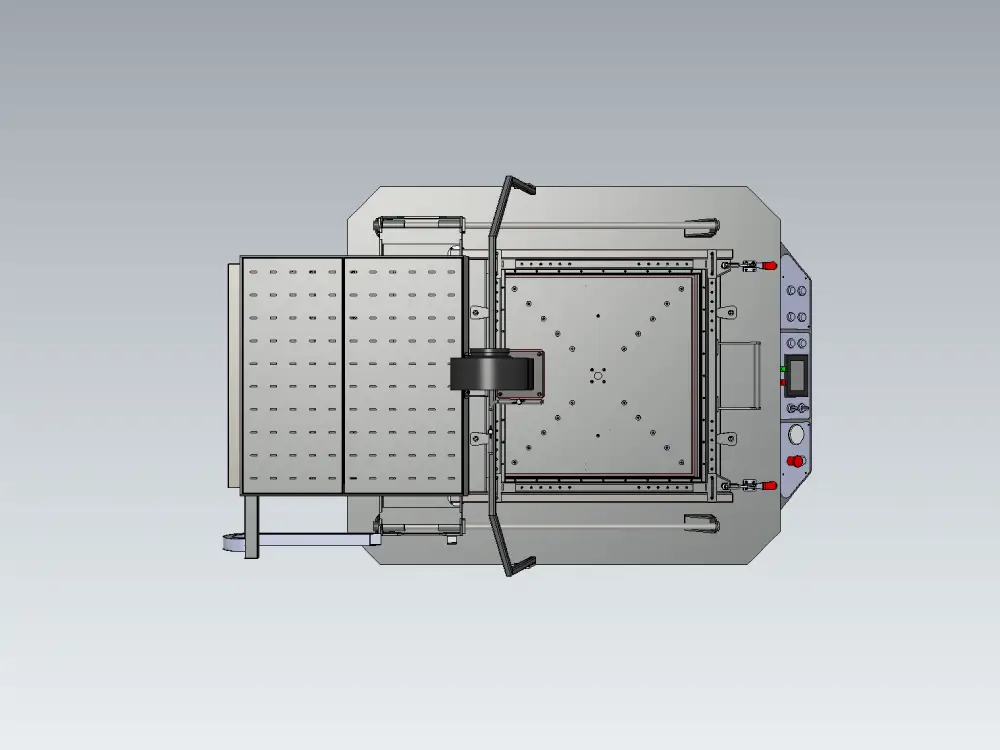

Explore the LITE 686 floor-standing vacuum forming machine through a detailed image gallery. The visuals highlight machine construction, forming area, heating system, control interface, and key components. Images reflect the current production model and demonstrate build quality, engineering precision, and suitability for professional thermoforming applications.

←→

. Technical Documentation

Access the complete technical documentation for the LITE 686 vacuum forming machine and build your own professional thermoforming system. The documentation package includes detailed drawings, programs, schematic. Self-assembly significantly reduces overall investment while maintaining industrial-level performance, accuracy, and production efficiency. Ideal for workshops, manufacturers, and engineering teams seeking full control over equipment setup.

CAD Files

SolidWorks source files and universal STEP format compatible with all major CAD systems

.SLDASM.STEP
01

Laser & Bending Files

DXF drawings and PDF sheets for laser cutting and sheet metal bending of structural parts

.DXF.PDF
02

Electrical Schematic

Complete electrical schematic diagram in PDF or JPG

.JPG
03

Vacuum Schematic

Pneumatic and vacuum circuit diagram — all lines, valves, fittings and connections explained

.PDF
04

PLC Delta Program

Ready-to-upload control program for Delta PLC — machine logic, timers and I/O configuration

.ISP
05

HMI Operator Panel

Operator panel interface program — screens, parameters display and alarm configuration

.DPA
06

. Who Is This Machine For?

The LITE 686 floor-standing vacuum forming machine is designed for small to medium-scale thermoforming applications across industries such as packaging, advertising, automotive, product development, and custom manufacturing. It is an effective solution for businesses that require reliable production of medium-sized plastic parts with high precision and consistent quality. Suitable for workshops, startups, and production teams working with materials like ABS, PET, PVC, and other thermoplastics.

Production & Business

  • Packaging (blisters, trays, containers)
  • Small batch manufacturing
  • Advertising & POS displays
  • Plastic enclosures production
  • Mold making for casting

Engineering & Development

  • Product prototyping
  • New device development
  • Design testing before mass production
  • Custom parts manufacturing
  • Engineering labs

Creative & Design

  • Architectural models
  • Industrial design
  • Props & cosplay
  • Interior & decor elements
  • Custom products

Education & Specialized Fields

  • Educational institutions
  • Medical & orthopedic applications
  • Food industry (forms & packaging)
  • Agriculture (seed trays, containers)
  • DIY / workshops / startups
Vacuum formed plastic products including packaging trays, blister packaging, prototype parts, cosplay mask and plastic enclosure displayed in a row
