VACUUM FORMING MACHINE

Large Vacuum Forming Machine LITE 2215

Large-format vacuum forming machine LITE 2215 for industrial thermoforming of oversized plastic parts. 2,200×1,500 mm forming area and 500 mm draw depth cover the widest range of large-scale applications — from automotive panels and industrial enclosures to architectural elements and large packaging. High-power multi-zone heating system, servo-driven mechanics, and robust welded frame ensure consistent output in continuous 24/7 production environments.

2,200×1,500 mm forming area210 kW3~ 400 V / 50 Hz
Send Request →Technical Files ↓
LITE 2215
Large Size Vacuum Forming Machine LITE 2215

. Technical Specifications

Complete technical specifications and standard equipment configuration of the LITE 2215 large-format vacuum forming machine. All parameters refer to the base model and may vary depending on selected options and production setup. Engineered for maximum forming area, high structural rigidity, and precise process control across demanding industrial thermoforming applications.

Basic Technical Specifications
Parameters Value
Sheet size2,240 × 1,540 mm
Forming area2,200 × 1,500 mm
Max depth of draw500 mm
Max material thickness7 mm
Power requirements3~ 400 V / 50 Hz
Power consumption240 kW
Design Implementation Methods
Parameters Value
Heating driveServo
Table drivePneumatics
Clamping frame drivePneumatics
HeatersInfrared quartz heaters, 450 W
ControlOperator panel 7″
Formed materialABS, PETG, HIPS, PVC, PP, PC etc.

. Machine Options

Expand the capabilities of the LITE 2215 large-format vacuum forming machine with optional upgrades designed for complex, high-volume production. Independent multi-zone heating control across up to 176 zones, automated recipe management, pre-stretching, and pyrometer-based temperature measurement deliver unmatched precision and repeatability when forming oversized or geometrically complex parts. These options make LITE 2215 a fully configurable thermoforming platform for the most demanding manufacturing environments.

01

Recipe Saving

Save and recall heating time, heating power, and vacuum parameters for each material and mould — repeat results with one button press.

Convenience
02

Plastic Pre-stretching

Air pre-stretching before raising the mold to the upper position ensures uniform wall thickness across deep draws and complex geometries.

Quality
03

Reducing Forming Window

Adjustable forming window insert reduces the working area for small parts — less material waste and faster cycle times.

Efficiency
04

Mould Ventilation

Integrated mould venting system enables safe part release without damage, preventing corner creasing and surface defects.

Quality
05

Up to 176 control zones

Up to 176 independent heating zones with individual power adjustment — ideal for asymmetric parts or materials with uneven thickness.

Control
06

Radiation pyrometer

Precise temperature control is ensured by a radiation pyrometer with real-time measurement and direct adjustment from the machine control panel.

Control
07

Air cooling

Installation of high-performance centrifugal fans on a rotary platform for rapid product cooling.

Control

. Gallery

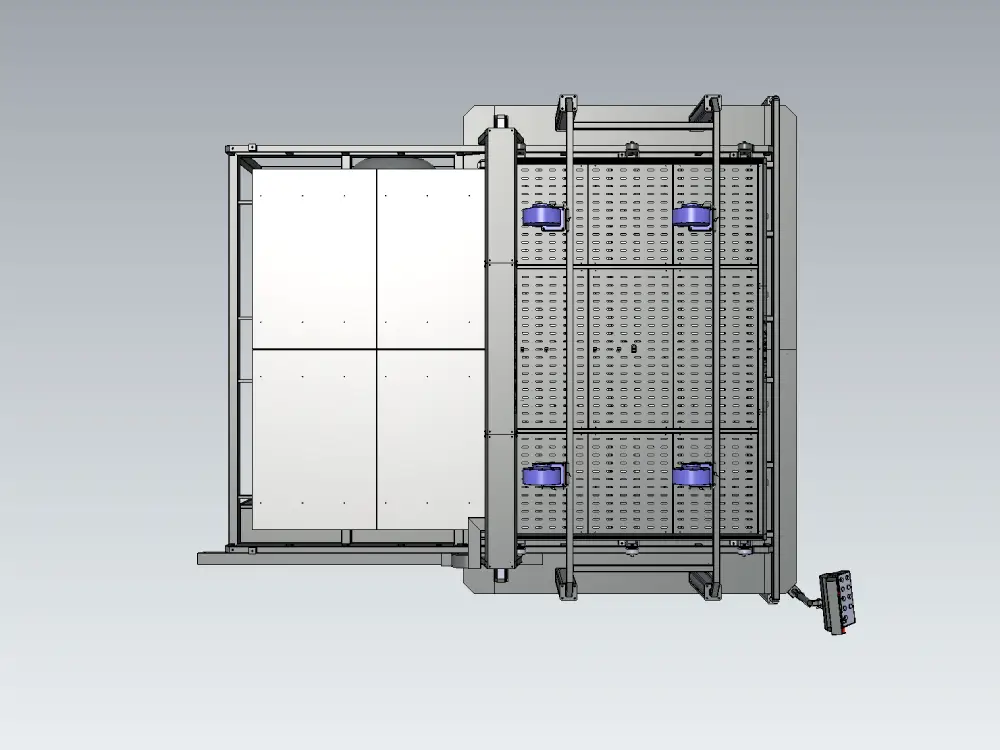

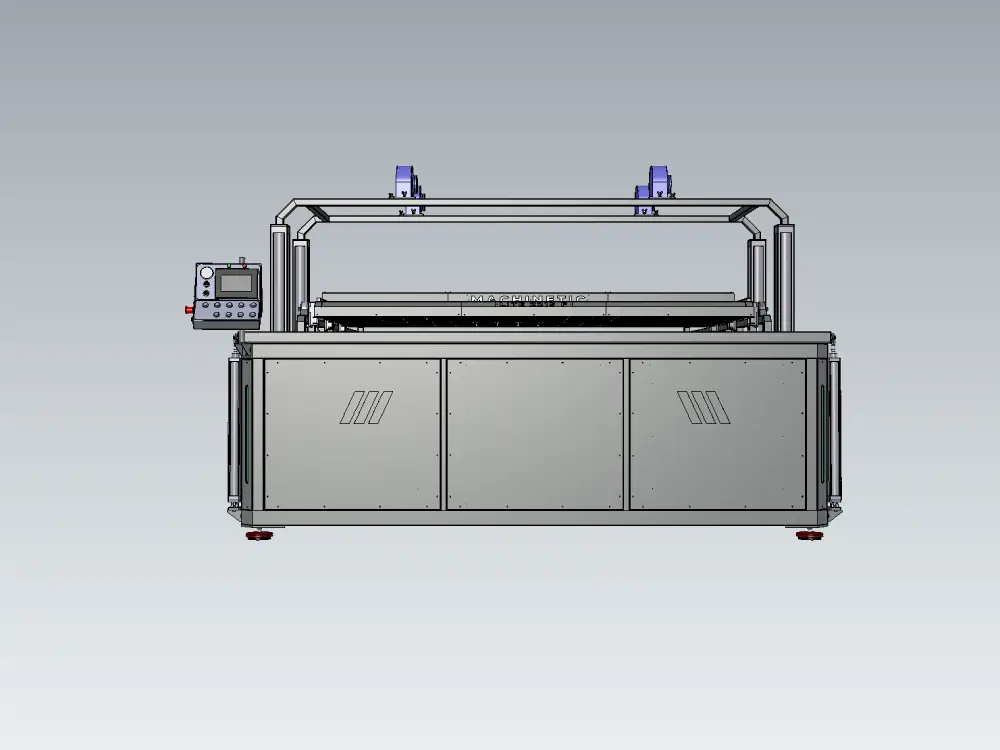

A detailed visual overview of the LITE 2215 large-format vacuum forming machine from multiple angles, showcasing the full-scale forming area, structural frame, control system, heating assembly, and key engineering components. Images represent the current production model and reflect the build quality, dimensional scale, and industrial-grade precision of the machine.

←→

. Technical Documentation

Get the complete documentation package for the LITE 2215 large-format vacuum forming machine and build your own industrial thermoforming system. Self-assembly delivers significant cost reduction compared to fully assembled equipment while maintaining full industrial performance, structural integrity, and production capability at scale. Designed for manufacturers, engineering teams, and industrial workshops requiring maximum forming area with complete control over machine configuration.

CAD Files

SolidWorks source files and universal STEP format compatible with all major CAD systems

.SLDASM.STEP
01

Laser & Bending Files

DXF drawings and PDF sheets for laser cutting and sheet metal bending of structural parts

.DXF.PDF
02

Electrical Schematic

Complete electrical schematic diagram in PDF or JPG

.JPG
03

Vacuum Schematic

Pneumatic and vacuum circuit diagram — all lines, valves, fittings and connections explained

.PDF
04

PLC Delta Program

Ready-to-upload control program for Delta PLC — machine logic, timers and I/O configuration

.ISP
05

HMI Operator Panel

Operator panel interface program — screens, parameters display and alarm configuration

.DPA
06

. Who Is This Machine For?

Large-format vacuum forming machine LITE 2215 is built for industrial thermoforming of oversized plastic parts across automotive, construction, agricultural equipment, advertising, and heavy manufacturing industries. It is the right choice for production facilities that require reliable, repeatable forming of large-format sheets with complex geometry, deep draws, and tight tolerances. Suitable for factories, OEM manufacturers, and industrial workshops processing ABS, PETG, PVC, PP, PC, and other engineering-grade thermoplastics at production scale.

Production & Business

  • Packaging (blisters, trays, containers)
  • Small batch manufacturing
  • Advertising & POS displays
  • Plastic enclosures production
  • Mold making for casting

Engineering & Development

  • Product prototyping
  • New device development
  • Design testing before mass production
  • Custom parts manufacturing
  • Engineering labs

Creative & Design

  • Architectural models
  • Industrial design
  • Props & cosplay
  • Interior & decor elements
  • Custom products

Education & Specialized Fields

  • Educational institutions
  • Medical & orthopedic applications
  • Food industry (forms & packaging)
  • Agriculture (seed trays, containers)
  • DIY / workshops / startups
Vacuum formed plastic products including packaging trays, blister packaging, prototype parts, cosplay mask and plastic enclosure displayed in a row
