VACUUM FORMING MACHINE

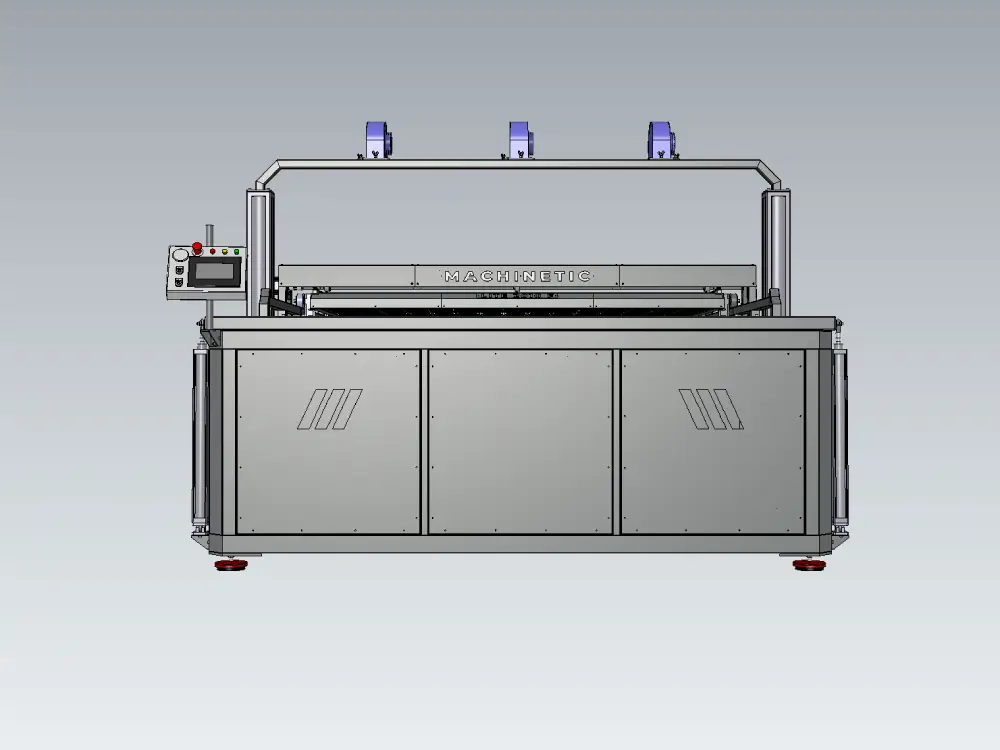

Industrial Vacuum Forming Machine LITE 2010

Industrial vacuum forming machine LITE 2010 designed for large scale thermoforming applications and continuous production environments. Featuring a 1960×960 mm forming area and 500 mm forming depth, the machine enables manufacturing of large plastic parts with high precision and structural consistency. Equipped with a powerful infrared heating system, stable vacuum performance, and advanced temperature control, it ensures uniform material distribution and repeatable forming results. Ideal for industrial production in packaging, automotive, construction, signage, and custom plastic manufacturing.

1,960×960 mm forming area125 kW3~ 400 V / 50 Hz
Send Request →Technical Files ↓
LITE 2010
Middle Size Vacuum Forming Machine LITE 2010

. Technical Specifications

Complete technical specifications and standard configuration of the LITE 2010 industrial vacuum forming machine. The machine offers a 1960×960 mm forming area and 500 mm forming depth, allowing efficient processing of large format thermoplastic sheets. All parameters correspond to the base model and may vary depending on selected options and production setup. Engineered for heavy duty operation, consistent heating performance, and high precision thermoforming across industrial applications.

Basic Technical Specifications
Parameters Value
Sheet size2,000 × 1,000 mm
Forming area1,960 × 960 mm
Max depth of draw500 mm
Max material thickness7 mm
Power requirements3~ 400 V / 50 Hz
Power consumption125 kW
Design Implementation Methods
Parameters Value
Heating driveServo
Table drivePneumatics
Clamping frame drivePneumatics
HeatersInfrared quartz heaters, 450 W
ControlOperator panel 7″
Formed materialABS, PETG, HIPS, PVC, PP, PC etc.

. Machine Options

Enhance the performance of the LITE 2010 vacuum forming machine with advanced optional features designed for industrial scale production. Available upgrades include multi-zone infrared heating control, recipe saving system, pre-stretching function, pyrometer temperature monitoring, and high efficiency air cooling. These options improve process stability, reduce cycle times, and ensure consistent quality in high volume manufacturing environments.

01

Recipe Saving

Save and recall heating time, heating power, and vacuum parameters for each material and mould — repeat results with one button press.

Convenience
02

Plastic Pre-stretching

Air pre-stretching before raising the mold to the upper position ensures uniform wall thickness across deep draws and complex geometries.

Quality
03

Reducing Forming Window

Adjustable forming window insert reduces the working area for small parts — less material waste and faster cycle times.

Efficiency
04

Mould Ventilation

Integrated mould venting system enables safe part release without damage, preventing corner creasing and surface defects.

Quality
05

Up to 77 control zones

Up to 77 independent heating zones with individual power adjustment — ideal for asymmetric parts or materials with uneven thickness.

Control
06

Radiation pyrometer

Precise temperature control is ensured by a radiation pyrometer with real-time measurement and direct adjustment from the machine control panel.

Control
07

Air cooling

Installation of high-performance centrifugal fans on a rotary platform for rapid product cooling.

Control

. Gallery

Explore the LITE 2010 industrial vacuum forming machine through a comprehensive gallery showcasing machine structure, forming area, heating system, control panel, and key engineering components. The images reflect the current production model and demonstrate industrial build quality, precision engineering, and capability for large scale thermoforming operations.

←→

. Technical Documentation

Access the full technical documentation package for the LITE 2010 vacuum forming machine and build a professional industrial thermoforming system. The documentation includes detailed CAD drawings. Self assembly significantly reduces investment costs while maintaining industrial level performance, precision, and reliability. Ideal for manufacturers and engineering teams requiring flexible configuration and full control over production setup.

CAD Files

SolidWorks source files and universal STEP format compatible with all major CAD systems

.SLDASM.STEP
01

Laser & Bending Files

DXF drawings and PDF sheets for laser cutting and sheet metal bending of structural parts

.DXF.PDF
02

Electrical Schematic

Complete electrical schematic diagram in PDF or JPG

.JPG
03

Vacuum Schematic

Pneumatic and vacuum circuit diagram — all lines, valves, fittings and connections explained

.PDF
04

PLC Delta Program

Ready-to-upload control program for Delta PLC — machine logic, timers and I/O configuration

.ISP
05

HMI Operator Panel

Operator panel interface program — screens, parameters display and alarm configuration

.DPA
06

. Who Is This Machine For?

The LITE 2010 industrial vacuum forming machine is developed for large scale thermoforming applications across industries such as packaging, automotive, construction, advertising, and product development. It is the optimal solution for companies that require stable production of large plastic parts with high precision, fast cycle times, and consistent quality. Suitable for factories, industrial workshops, and engineering teams working with ABS, PET, PVC, PS, and other thermoplastic materials.

Production & Business

  • Packaging (blisters, trays, containers)
  • Small batch manufacturing
  • Advertising & POS displays
  • Plastic enclosures production
  • Mold making for casting

Engineering & Development

  • Product prototyping
  • New device development
  • Design testing before mass production
  • Custom parts manufacturing
  • Engineering labs

Creative & Design

  • Architectural models
  • Industrial design
  • Props & cosplay
  • Interior & decor elements
  • Custom products

Education & Specialized Fields

  • Educational institutions
  • Medical & orthopedic applications
  • Food industry (forms & packaging)
  • Agriculture (seed trays, containers)
  • DIY / workshops / startups
Vacuum formed plastic products including packaging trays, blister packaging, prototype parts, cosplay mask and plastic enclosure displayed in a row
