Compact professional vacuum forming machine with 450×450 mm working area, quartz infrared heating, and 5 kW power — designed for continuous 24/7 operation. No industrial building required. Ready for prototyping studios, design firms, educational institutions, and advertising production.
Detailed technical parameters and standard equipment configuration of the SMARTFORM 450 desktop vacuum forming machine. All specifications are provided for the base model and may vary depending on selected options.
Expand the capabilities of SMARTFORM 450 with optional upgrades designed for professional production. Pre-stretching, multi-zone heating control, and recipe saving turn a compact desktop machine into a full-featured thermoforming solution.
Save and recall heating time, heating power, and vacuum parameters for each material and mould — repeat results with one button press.
ConvenienceAir pre-stretching before raising the mold to the upper position ensures uniform wall thickness across deep draws and complex geometries.
QualityAdjustable forming window insert reduces the working area for small parts — less material waste and faster cycle times.
EfficiencyIntegrated mould venting system enables safe part release without damage, preventing corner creasing and surface defects.
QualityFour independent heating zones with individual power adjustment — ideal for asymmetric parts or materials with uneven thickness.

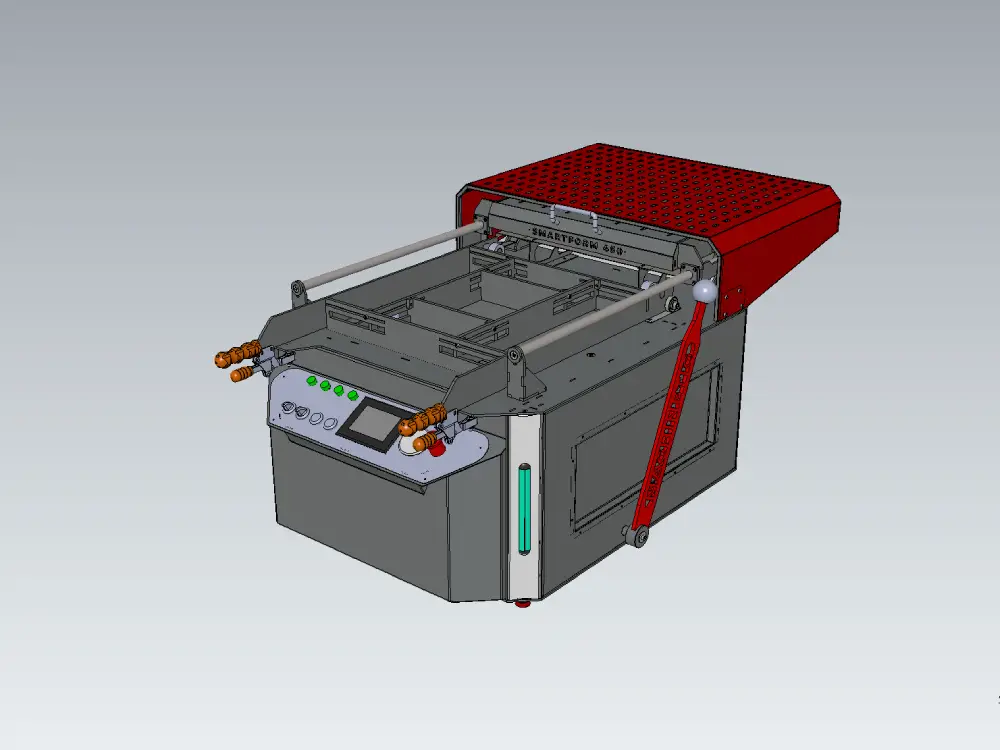

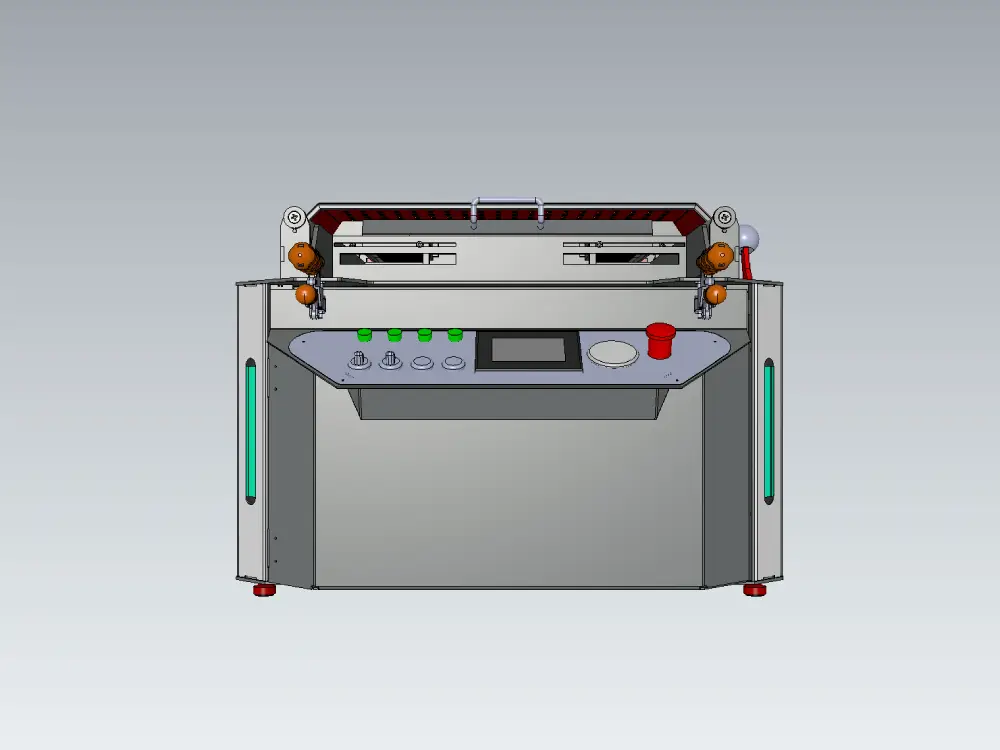

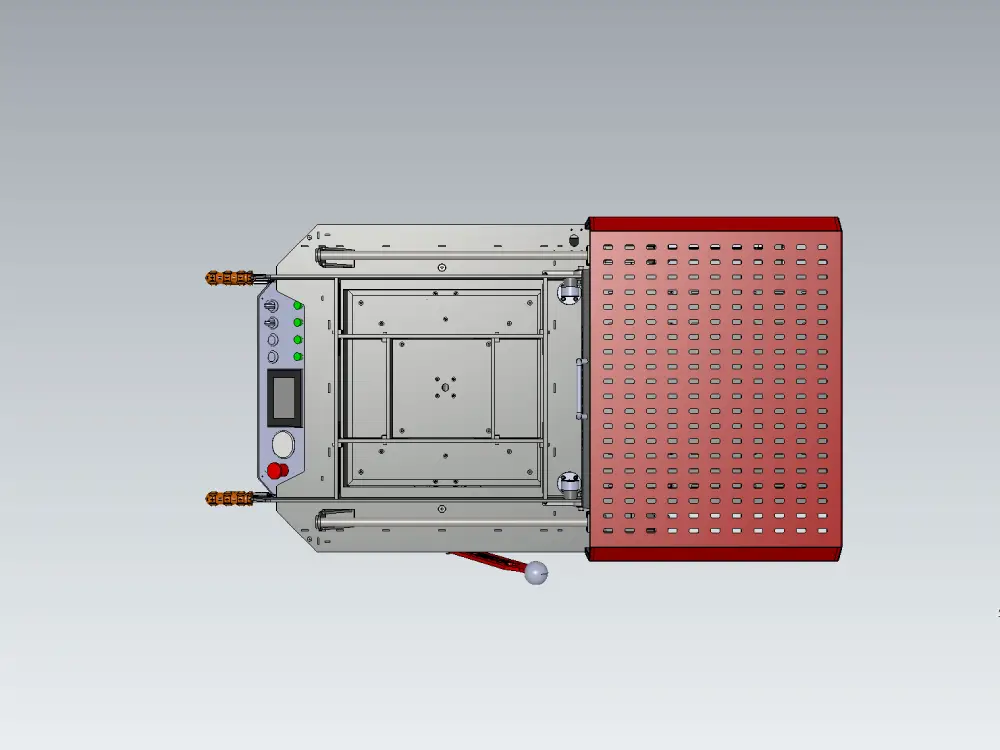

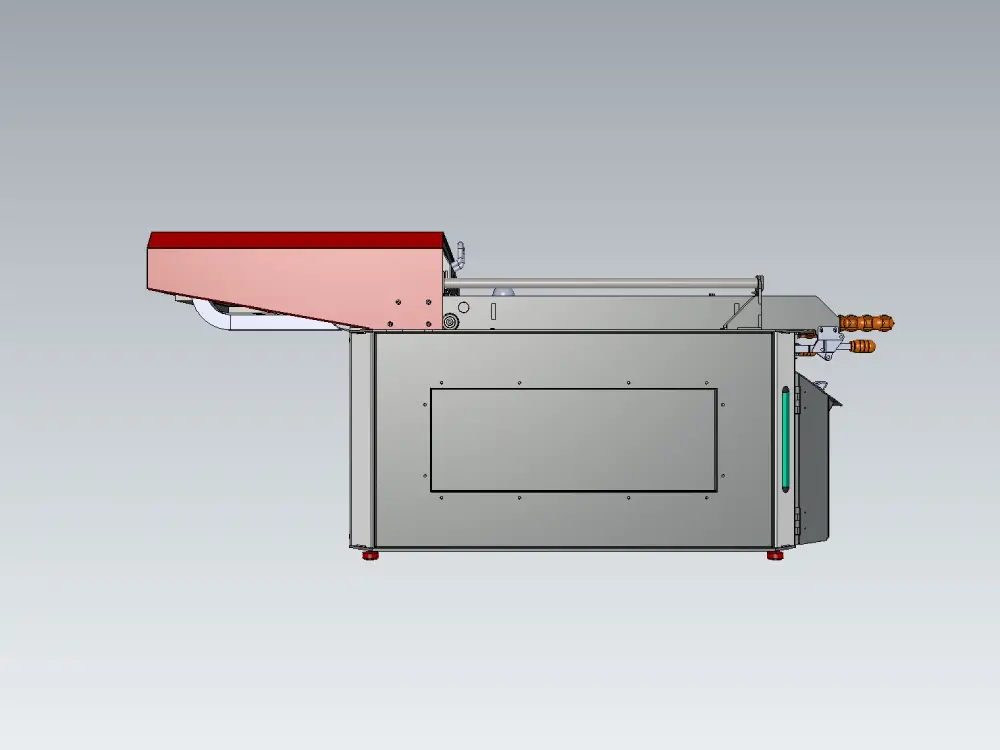

ControlA closer look at the SMARTFORM 450 from every angle — machine design, control panel, forming area, and key components. Photos reflect the current production version.
Get the complete documentation package for SMARTFORM 450 and build your own professional vacuum forming machine. Self-assembly saves up to 60% compared to buying a ready-made unit — without compromising on quality or capabilities.
SolidWorks source files and universal STEP format compatible with all major CAD systems
DXF drawings and PDF sheets for laser cutting and sheet metal bending of structural parts
Complete electrical schematic diagram in PDF or JPG
Pneumatic and vacuum circuit diagram — all lines, valves, fittings and connections explained
Ready-to-upload control program for Delta PLC — machine logic, timers and I/O configuration
Operator panel interface program — screens, parameters display and alarm configuration
Desktop vacuum forming machines are widely used across industries — from packaging production and product prototyping to design, education, and small-scale manufacturing. Their versatility, low startup cost, and fast production cycles make them an ideal solution for businesses, engineers, and creators working with thermoplastic materials.
